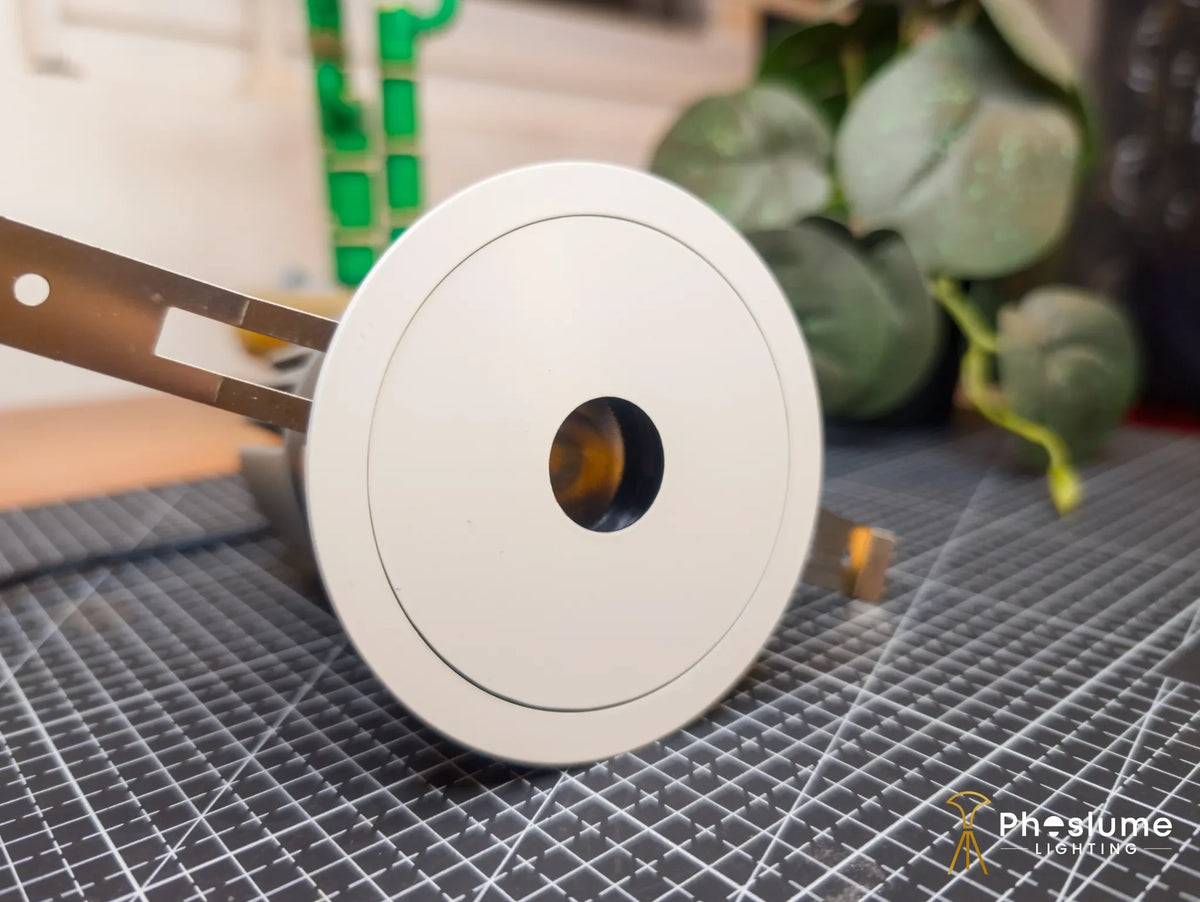

15W Micro-Aperture Adjustable Recessed Downlight
A high-output adjustable recessed downlight with an ultra-slim 23 mm visible aperture, created to keep the ceiling quiet while directing light with precision.
15W1,176 lm24° / 36°CRI ≥90Cree / ToyoniaIP20
Rs. 6,550.00
Rs. 5,950.00
3-year warranty
Item added to cart!
DESIGN NOTES
Dot combines a discreet 23 mm visible aperture with the output expected from a much larger architectural downlight. Its 15W light engine delivers 1,176 lumens through a choice of 24° or 36° optics, while 360° rotation and 20° tilt allow the beam to be aimed toward artwork, joinery, tables or selected wall surfaces. CRI ≥90 supports more faithful colour and material rendering. The catalogue lists Cree or Toyonia LED sources depending on configuration; the final source should be confirmed against the selected CCT before dispatch. Choose white or black to coordinate with the ceiling, and 3000K, 4000K or 5000K to set the visual temperature. Tunable White is available by project enquiry. Dot is an IP20 fitting for dry interiors.
BEST SUITED FOR
- Living and dining feature zones
- artwork
- textured walls
- joinery
- tables
- display shelves
- hospitality and retail accents
- and medium-height interiors where strong output is needed from a visually restrained ceiling aperture. Use 24° for tighter emphasis and 36° for softer pools.
NOT RECOMMENDED FOR
- Bathrooms
- exposed balconies and moisture-prone locations; very low ceilings where the tilted source may enter the eye line; broad ambient-only layouts; projects needing a dedicated asymmetric wall washer; or trimless installations
- which should use the separate Dot Trimless SKU.
ESSENTIAL INFORMATION
Everything needed to select it.
The product page stays concise. Detailed electrical data, drawings, installation guidance and complete warranty terms sit inside the downloadable technical pack.
Power
15W
Luminous output
1,176 lm
Beam angle
24° / 36°
Colour temperature
3000K / 4000K / 5000K · Tunable White by enquiry
Colour rendering
CRI ≥90
LED source brand
Cree / Toyonia · configuration dependent
Ingress protection
IP20
Body colou
r White / Black
Construction
Aluminium · 23 mm visible aperture
Fixture / cut-out
Ø82 × H106 mm / Ø75 mm
Mounting / aiming
Recessed trimmed · 360° rotation · 20° tilt
Dot carries Phoslume’s three-year product warranty against covered manufacturing defects under normal dry-indoor use. Correct installation, sufficient ceiling clearance, compatible components, proof of purchase and the full warranty terms apply. Dispatch timing is confirmed for body colour, beam angle and CCT at order confirmation. Tunable White is by project enquiry. This page covers the standard trimmed version only.
