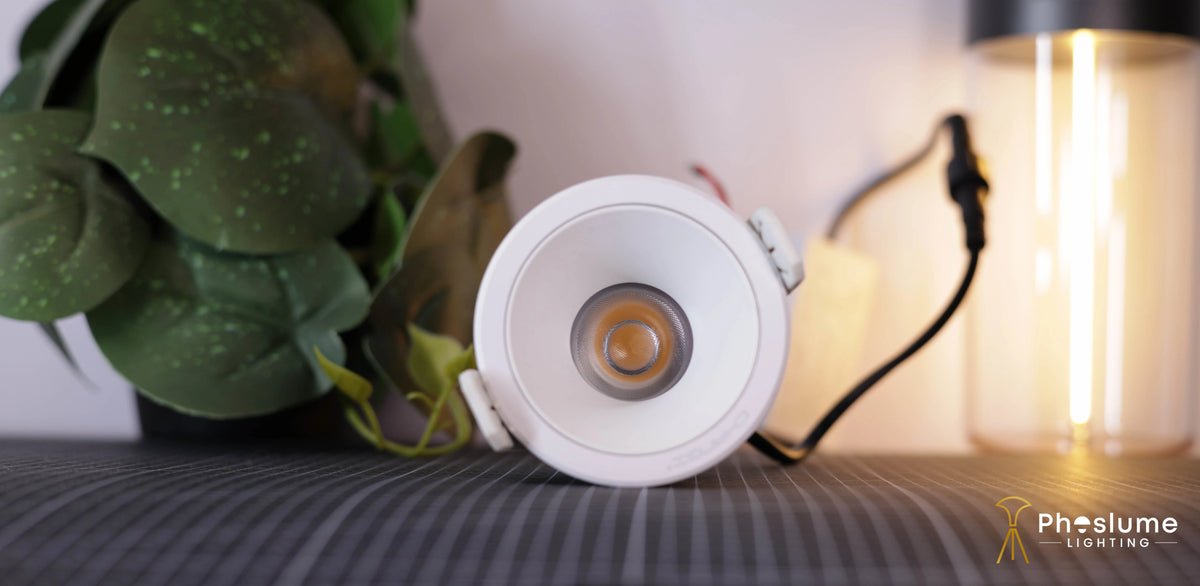

7W IP65 Compact Deep Recessed Downlight

A compact IP65 recessed downlight with a deep source-shielding reflector, CRI ≥90 and a controlled 36° beam for bathrooms, wash areas and sheltered semi-outdoor ceilings.

7W560 lm36°CRI ≥90BridgeluxIP65
Rs. 2,350.00
3-year warranty
Indoor usage
Phoslume Lighting
Item added to cart!
7W POWER
560 lm LUMINOUS OUTPUT
36° BEAM ANGLE
CRI ≥90 CRI
Bridgelux LUMINOUS OUTPUT
IP65 PROTECTION
DESIGN NOTES

Steam is the compact wet-area general downlight within the Mist Series. Its 7W Bridgelux light engine produces a catalogue-rated 560 lumens through a fixed 36° optic, creating a controlled pool that sits between a narrow accent and a broad flood. The LED is recessed behind a deep reflector to reduce direct source visibility; this is a lower-glare design, not a glare-free claim. CRI ≥90 supports more faithful materials and skin tones, while the Ø62 mm face and Ø55 mm cut-out keep the ceiling presence compact. IP65 applies to the correctly installed fixture: it does not automatically protect the driver, wiring joints or surrounding ceiling, and it is not a certification for high-temperature steam rooms or immersion.

Controlled functional output

A catalogue-rated 560 lumens through a 36° optic creates a useful pool for compact bathrooms, wash areas and sheltered ceilings.

Compact ceiling presence

A Ø62 mm face and Ø55 mm cut-out keep the fitting discreet while retaining a useful general-light output.

CRI ≥90 Bridgelux source

High colour rendering supports more faithful stone, tile, finishes and skin tones in residential and hospitality-style interiors.

IP65 fixture protection

Dust-tight, water-jet-resistant fixture protection supports bathrooms and sheltered semi-outdoor ceilings when the complete installation is coordinated.

BEST SUITED FOR
  • Bathrooms
  • powder rooms
  • vanity zones
  • wash areas
  • utility rooms
  • covered balcony ceilings
  • entrance canopies and sheltered soffits that need compact
  • controlled functional light. Coordinate the 560-lumen output and 36° beam with ceiling height
  • spacing
  • surface reflectance
  • electrical zoning and the wider lighting plan.
NOT RECOMMENDED FOR
  • High-temperature steam rooms
  • immersion
  • exposed weather
  • unprotected drivers or wiring joints
  • large rooms needing high-output ambient light
  • ultra-narrow accents or broad uniform wall washing. The fixed 36° beam cannot be redirected after installation.
ESSENTIAL INFORMATION

Everything needed to select it.

The product page stays concise. Detailed electrical data, drawings, installation guidance and complete warranty terms sit inside the downloadable technical pack.
Power 7W
Luminous output 560 lm
Beam angle 36°
Colour temperature 3000K / 4000K / Tunable White
Colour rendering CRI ≥90
LED Bridgelux
Ingress protection IP65
Body colour White / Black
Construction Aluminium
Fixture / cut-out Ø62 × H58 mm / Ø55 mm
Mounting Recessed fixed

Steam is backed by Phoslume’s three-year product warranty against covered manufacturing defects under normal operating conditions within its confirmed IP65 application. Correct installation, intact seals, suitable cable connections, adequate ceiling clearance and compatible electrical components are required. The driver, cable joints and surrounding assembly must have protection appropriate to their location. Proof of purchase and the full warranty terms govern all claims. Dispatch timing is confirmed at order confirmation. Steam is offered in White or Black with 3000K and 4000K options. Tunable White is catalogue-listed, but its driver, controls, compatibility and price must be confirmed before sale.
