15W Trimless Adjustable Recessed Downlight

A plaster-in version of Dot that leaves only a 23 mm light aperture visible, delivering high-output, aimable light without an exposed trim ring.



15W1,176 lm24° / 36°CRI ≥90Cree / ToyoniaIP20
Rs. 6,800.00
3-year warranty
Indoor usage
Phoslume Lighting
Item added to cart!
15W POWER
1,176 lm LUMINOUS OUTPUT
24° / 36° BEAM ANGLE
CRI ≥90 CRI
Cree / Toyonia SPECIFICATION
IP20 PROTECTION
DESIGN NOTES

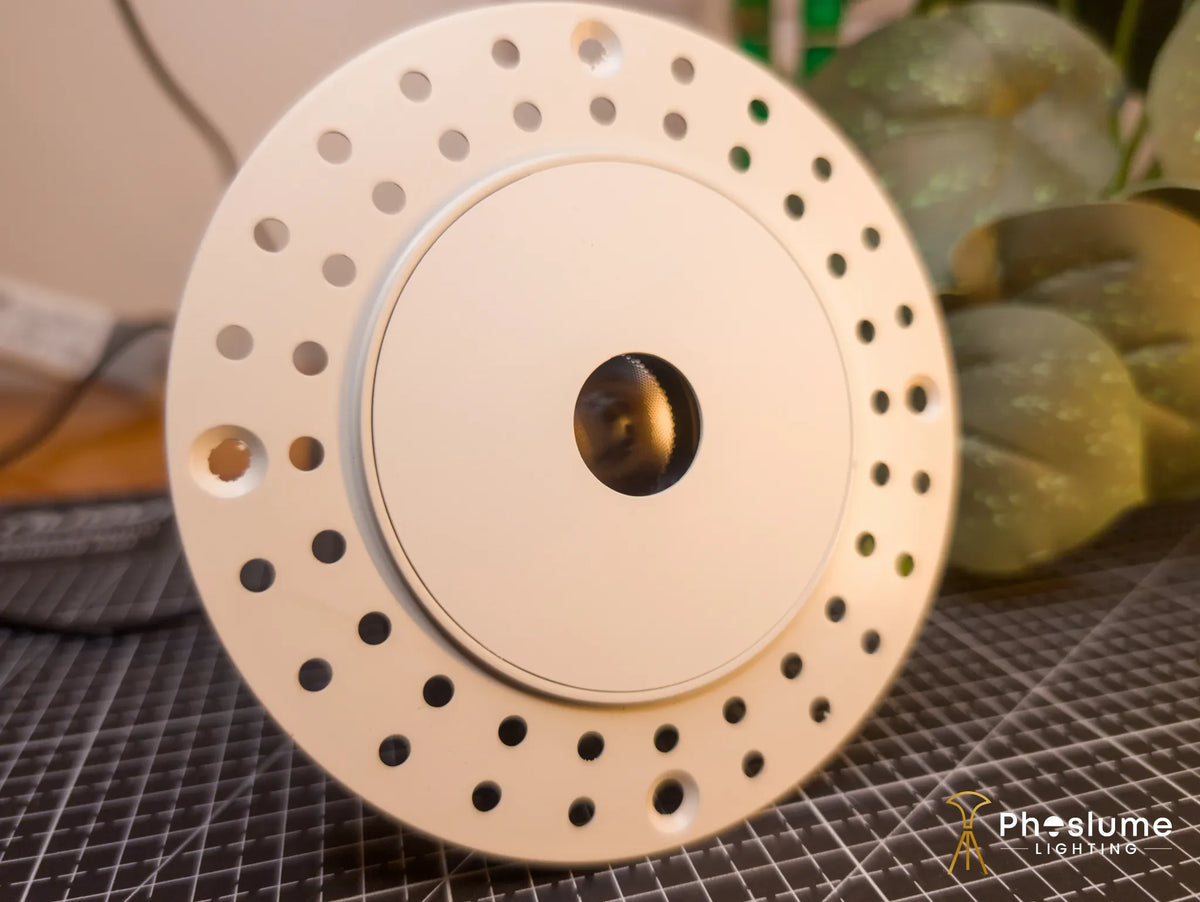

Dot Trimless keeps the same 15W, 1,176-lumen optical package as Dot but uses a plaster-in frame that is finished into the gypsum ceiling. Once completed, the flange disappears and only the 23 mm light aperture remains visible. Choose the 24° optic for tighter accents or 36° for softer pools; 360° rotation and 20° tilt allow precise final aiming. CRI ≥90 supports faithful material colour, while Cree or Toyonia LED sources are used by configuration. Specify the trimless version when the ceiling is being built and visual continuity matters. The frame must be installed and levelled before final putty and paint, with driver and service access coordinated in advance. It is an IP20 fitting for dry interiors.

Seamless ceiling integration

The plaster-in frame is concealed within the ceiling finish, leaving no visible flange around the 23 mm aperture.

Same Dot performance

Retains the 1,176-lumen output and 24° / 36° optic choice while creating a cleaner architectural ceiling.

Aim after installation

Use 360° rotation and 20° tilt to focus artwork, joinery, tables or selected wall surfaces after the ceiling is complete.

Plan before plastering

Fix and level the trimless frame before putty and paint, and coordinate driver placement and future service access before closing the ceiling.

BEST SUITED FOR
  • New-build and renovation projects with gypsum or plasterboard false ceilings; premium residences
  • hospitality
  • galleries and retail interiors where a monolithic ceiling matters. Use it for artwork
  • joinery
  • tables and selected wall surfaces. Install the frame before putty and paint
  • then aim the finished light on site.
NOT RECOMMENDED FOR
  • Completed ceilings or quick retrofits unless cutting
  • plaster repair and repainting are acceptable; exposed concrete ceilings; bathrooms
  • balconies and moisture-prone locations; installations without coordinated driver access; or very low eye lines.
ESSENTIAL INFORMATION

Everything needed to select it.

The product page stays concise. Detailed electrical data, drawings, installation guidance and complete warranty terms sit inside the downloadable technical pack.
Power 15W
Luminous output 1,176 lm
Beam angle 24° / 36°
Colour temperature 3000K / 4000K / 5000K · Tunable White by enquiry
Colour rendering CRI ≥90
LED source brand Cree / Toyonia · configuration dependent
Ingress protection IP20
Body colour White / Black
Construction Aluminium · 23 mm visible aperture
Fixture / cut-out Ø110 × H106 mm / Ø75 mm
Mounting / aiming Recessed trimless plaster-in · 360° rotation · 20° tilt

Dot Trimless carries Phoslume’s three-year product warranty against covered manufacturing defects under normal dry-indoor use. Correct plaster-in installation, sufficient ceiling clearance, service access, compatible components, proof of purchase and the full warranty terms apply. Dispatch timing is confirmed for body colour, beam angle and CCT at order confirmation. The trimless frame should reach site before ceiling finishing. Tunable White is by project enquiry.
